    80ton Heavy Duty Double Girder Gantry Cranes For Granite And Marble Stone Lifting

    Ask Lasest Price
    Brand Name : SANTO
    Model Number : MG MDG
    Certification : ISO, CE
    Price : USD6000-40000/set
    Payment Terms : L/C, T/T
    Supply Ability : 5000set/year
    Delivery Time : 35-45 working days
    • Product Details
    • Company Profile

    80ton Heavy Duty Double Girder Gantry Cranes For Granite And Marble Stone Lifting

    80ton Heavey Duty Double Girder Gantry Cranes For Granite And Marble Stone Lifting



    General Introduction:


    Double girder electric gantry crane 80 ton are made up of bridge, trolley, crane traveling mechanism and electric system.All the procedures are finished in the operating room. Applies to the open warehouse or rail along for general handling and lifting work. Also can equipped with many lifting device for special work. Prohibited for lifting high temperature solution, flammable, explosive, corrosion, overloading, dust and other dangerous operations.


    Detail Features:


    DESIGN:Compact dimensions, low weight, easy to operate and easy to maintain, modular design with direct fits between components.


    MOTORS:Axon uses sturdy cylindrical / conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection.


    GEAR BOXES:Precision flat helical / spur gear units in light alloy housings with case-hardened gears, high-grade surface treatment and permanent oil / grease lubrication.


    BRAKES:Single / Dual-disc electromagnetic DC brakes featuring automatic braking on power failure. Environmentally sound brake linings designed for approx. 1 million braking operations allow long maintenance intervals.


    ELECTRICAL PANEL:Modular design, covering a very wide operating range. The systems are designed for ease of installation and maintenance and reliable operation, with fuse less circuitry, ducted wiring and non-screwed terminals. Each drive group is equipped with a motor overload protection device to provide effective protection against inadmissible overloading.


    PAINTING:Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of *polymer based quick drying acrylic polycot paint after testing.


    Typical Technical Parameters:


    Load CapacityMaint5075100200320400500
    Aux10202032503080
    SpanS(m)3035401622181828.5
    Lifting heightMainmAbove rail max.2222161213183 3/10
    AuxAbove rail max.2417.513142034
    Lifting speedMainm/min7.686.254.620.2-1.80.14-1.40.15-1.50.15-1.5
    Aux19.89.289.2867.560.6-6
    Trolley speedm/min38.638.913.1207101.36-13.6
    Crane speedm/min42.717.81617181.6-16
    Work dutyA5A5A5A5A5A5A5
    TrackQU 80QU 100QU 120


      Advantages:


      1. Extremely Rigid Box Girder Frame

      • Compact structure, space saving.

      • Single box girder, adapt advanced welding technology, ISO standard.

      • Material Q235B ( Fe37).

      • 10.9 class High tension bolts mouting between girder and legs, life time safety connection.

      • Double flanged or flat wheels, anti-friction bearings, cellular buffers, derailment protectors.

      2. Realiable Electric Trolley

      • Rope Drum material Q235B, more realible

      • Durable Rope guide, long life serving

      • Limit Switch and overload protection device help you keep safety

      3. Easy to Operation, Precise Position, More Safety

      • LIMIT SWITCHES – To prevent over hoisting & over lowering of hook.

      • PUSH BUTTON STATIONS – Extra light, handy, easy to operate. Wireless Radio remote controls are also conveniently and widely being used now.

      • SOFT STARTS – Electric / Electronic soft start modules electrically coupled to the long travel drives to achieve jerk free, cushioned & smooth starts.

      • MAINTENANCE PLATFORM WITH HAND RAILING – Easy, simple & safe maintenance of the Crane extended partially or along the full length of the girder.

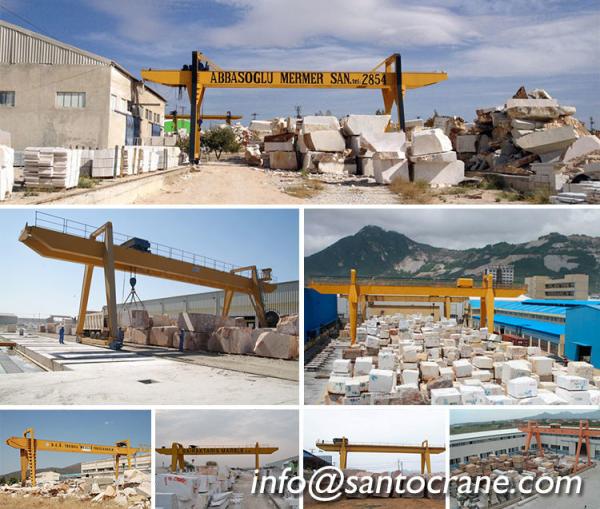

      Pictures:



      Quality 80ton Heavy Duty Double Girder Gantry Cranes For Granite And Marble Stone Lifting for sale
