European Model CXTD 20T Double Girder EOT Crane With Trolley Hoist

Ask Lasest Price
Brand Name :	SANTO
Model Number :	CXTD, CXSM
Certification :	ISO, CE
Price :	USD2000-10000/set
Payment Terms :	L/C, T/T
Supply Ability :	5000set/year
Delivery Time :	30-45 working days

Add to Cart

Product Details
Company Profile

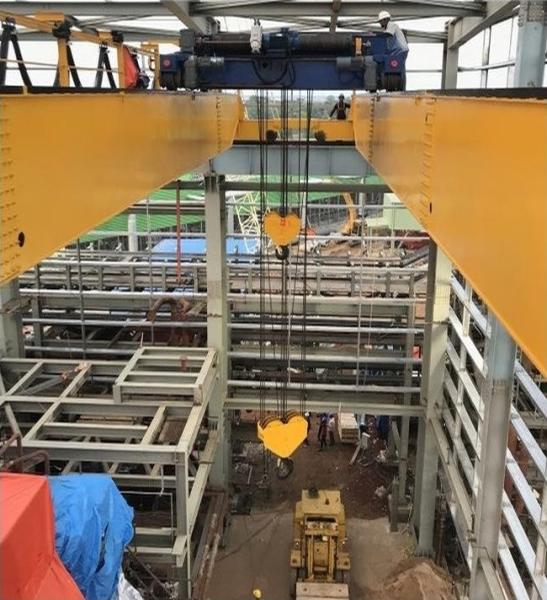

European Model CXTD 20T Double Girder EOT Crane With Trolley Hoist

European Model CXTD 20T Double Girder EOT Crane With Trolley Hoist

Description:

FEM/DIN standard double girder overhead crane is designed and manufactured with European standard. The lifting capacity of this FEM/DIN double standard overhead crane can be up to 550t. The trolley is installed between two main girders. Thus it increases the traveling scope of spreader. This crane is with reliable performance, flexible application range, easy to operate and convenient to maintain.

Specification:

Lifting Capacity	Span	Lifting Height	Work Duty	Main Hook Speed	Aux. Hook Speed	Trolley Traveling Speed	Crane Traveling Speed	Rail Track


t	m	m		m/min	m/min	m/min	m/min
5	13.5~19.5	18	A5	0.84~8.4		3.4~34	5.1~51	38kg
	22.5~31.5						5~50
5	13.5~19.5	18	A5	0.78~7.8		3~30	5~50	38kg
	22.5~31.5						5.2~52
16/5	13.5~19.5	18/18	A5	0.76~7.6	0.84~8.4	3.5~35	5.1~51	43kg
	22.5~31.5						5.2~52
20/5	13.5~19.5	18/18	A5	0.6~6	0.84~8.4	3.5~35	5.1~51	43kg
	22.5~31.5						5.2~52
32/5	13.5~19.5	18/18	A5	0.52~5.2	0.84~8.4	3.1~31	5.1~51	43kg
	22.5~31.5						5.2~52
50/10	13.5~19.5	18/18	A5	0.43~3.9	0.78~7.8	3.6~36	4.8~48	43kg
	22.5~31.5						5.4~54
Notes: Span, lifting height is customizable as requirements

Features:

1. Lightweight and Modular Design, Overall height is 20%~25% lower than traditional cranes;

2. Self-weight is lighter by 20%~30%;

3. Max wheel load reduces 15%~20%;

4. Smaller limiting size increases working scope;

5. Light structure reduces the cost of workshops;

6. Every component designed to be a standard series and interchangeable;

7. Modularization design is easy for transporting;

8. Standard modular design makes good quality and fast delivery.

Advantage:

1. Use imported motor with insulation grade of F and protection degree of IP54. With overheat alarm. The motor is shielded by aluminum alloy stretching cover with good heat dissipation performance;

2. Imported reducer from Germany. hardened gears with good bearing capacity, excellent seal without penetration of grease;

3. Main electric components imported from international brands such as: Siemens, Schneider and ABB etc. with protection degree not lower than IP54;

4. Wheels are forged by 65mn alloy steel with features of wear-proof, anti-fatigue and long service life.

5. Low energy consumption and maintenance free;

6. Whole crane energy saving about 30%;

7. All-in-one transmission mechanism making it work more efficient;

8. Variable frequency control whose high and low rotating speed ratio is 1:10 and work efficiency increases more than 20%;

9. Less and easy maintenance reduces the cost of maintenance;

10. Manufactured by advanced technology and constituted by high quality imported components greatly reducing malfunction and cost;

Safety Protection:

Overload limiter, limit switch (lifting and travelling), interlocking protection device, buffer, rail clear plate, shield, bus protection plate, anti-collision device, main disconnecting switch, emergency brake system and motor overload protection device.

Company Information:

Santo crane mainly dealing in researching, developing and producing the lifting machinery, port machinery, construction-use tower crane, reducer, etc.
The leading products of Santo widely used in Machinery, Metallurgy, Electric Power, Railway, Aerospace , Port, Petroleum, Petrochemical, etc, our products are serving the national key projects such as: the South-to-North Water Transfer Project, the West-East National Gas Transmission, the Three Gorges Hydropower Station, Jiuquan Satellite Lunching Center, Qinshan Nuclear Power Station, Hangzhou Bay Bridge, Beijing Olympic Games and so on, accelerate successfully the launch of Spacecraft Shenzhou-10 and Chang’e-3,our products have been exported to more than 69 countries like America, Japan, Russia, Korea, etc. In 2013 the annual sales revenue reached 6.669 billion, and the Overhead Traveling Crane and the Gantry Crane continue to hold the first position around the whole country
