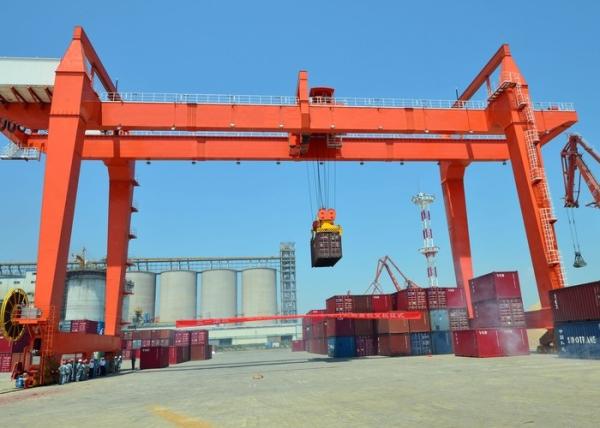

    Strong Bearing Capacity Double Beam Gantry Crane 5-50 Ton For Smelting Works

    Strong Bearing Capacity Double Gantry Crane 5 - 50 Ton For Smelting Works


    Description:


    The double main girder gantry crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single main girder gantry crane with the same lifting capacity, and the cost is also higher. According to the different main beam structures, it can be divided into two forms: box beam and truss. Generally, a box structure is used.


    Technical Specification:


    Lifting Capacityt51016/3.220/532/550/10
    Working DutyISOA3-A8
    Spanm7-35, customized
    Lifting HeightMain hookm101110111011101110111012
    Aux. hook10.275,11.27510.446,11.44610.7311.7310.91812.918
    SpeedLiftingMainm/min11.38.57.97.27.55.9
    Aux.14.615.415.410.4
    Trolley traveling37.335.636.63736
    Crane traveling37.339.740.139.739.737.339.739.438.5
    Recommended Tail43kg/m43kg/m or QU70
    Power Supply3-Phase 380V 50HZ, or as clients' requirement

    Features:


    Material: Steel plate material Q235 or Q345B ( similar with foreign steel plate Fe3 or Fe52)
    Gantry cranes are more quickly and easily for installed and disassembled, it is ideal choice for use in a rented factory or in multiple work place
    Equipped with all the necessary safety device
    High reliability component
    High work duty, can bearing heavy capacity and long time work
    Needn’t any column, runway beam, just travel on the ground
    Suit for both of outdoor and indoor
    Main electrical parts: Chint, Siemens or Schneider brand


    Constituent parts:


    According to the industry standard GB/T14406, the gantry crane is mainly composed of the following components
    1. Cylindrical wheel
    2. Buffer
    3. Block brake
    4. Steel wire rope
    5. Lifting hook
    6. Driver's cab
    7. Reducer
    8. Casting pulley
    9. Casting reel
    10. Motor
    11. Electronic control equipment


    Crane Detail:




    Delivery:


    Needed information for quotation:


    • Load capacity
    • Span of the crane
    • Lifting height
    • Travelling length
    • What kind of goods does the crane lift?
    • How many hours does the crane work per day and how many times per hour?
    • Electric power supply

    According to your requirements, our crane experts will assist you to select a crane that best fits your application.
