    GTZN Industrial Hydraulic Lifting Platform Rough Terrain Scissor Lift With Outriggers

    Ask Lasest Price
    Brand Name : SANTO
    Model Number : GTZN
    Certification : ISO, CE
    Price : USD55000-89000/set
    Payment Terms : L/C, T/T
    Supply Ability : 2000set per year
    Delivery Time : 30-35 working days
    • Product Details
    • Company Profile

    GTZN Industrial Hydraulic Lifting Platform Rough Terrain Scissor Lift With Outriggers

    Industrial Rough Terrain Scissor Lifts Platform Machine With Positive Traction Control


    General description:

    Rough Terrain Scissor Lifts are tough, construction-oriented four-wheel drive machines with positive traction control — ideal for increasing productivity in demanding outdoor worksites. Rough Terrain scissor lifts are able to traverse through uneven or rough terrain environments more efficiently. They are equipped with four-wheel drive and positive traction control for traction when you need it most. They offer up to 50% gradeability when driving on slopes.

    Advantages:

    Rough terrain scissor lifts includes both fully electric motor drive (DC) and hydraulic motor drive (HD) models to boost jobsite versatility and performance both indoors and outside while representing significant cost savings over diesel powered lifts.
    ► Four wheel drive, Up to 50% gradeability when driving on slopes, exceptionally mobile.

    ► For narrow rough terrain applications, Excellent crossing ability on the outdoor tough working sites.

    ► Large working platform and handing with multi-position extensions capacity to generate great productivity.
    ► Self leveling hydraulic outriggers make it more durable at uneven ground.

    ► Vertical lift maintenance. On-board diagnostics for easy troubleshooting.

    ► Work cycle is double than other scissor lift.


    On board diagnostics help operators troubleshoot on the fly and make adjustments in the field to maintain uptime. Plus, slide- or pull-out engine trays allow easy access to components — no need to reach around obstacles inside the machine.

    Equipment:
    Standard ConfigurationOptions

    ● Self-leveling hydraulic outriggers

    ● Dual slide-out platform extension

    ● Proportional lift and drive

    ● Self-lock Gate On Platform
    ● Folding rails

    ● Onboard diagnostic system

    ● Cylinder holding valve
    ● Onboard diagnostic system
    ● Automatic brake system

    ● Emergency stop button
    ● Anti-restart engine protection
    ● European III emission engine
    ● Hydraulic oil cooler
    ● Vertical lift maintenance

    ● Full height swing gate
    ● Two self-closing gates
    ● 4WD
    ● Positive traction control
    ● Four-wheel braking
    ● Slide-out engine tray
    ● Foam-filled rough terrain tires
    ● Tilt level sensor with audible alarm
    ● Descent alarm
    ● Horn
    ● Hour meter
    ● Motion alarm
    ● Hydraulic generator
    ● Hydraulic welder
    ● Hydraulic compressor
    ● Hydraulic water pump
    ● Overload sensor with alarm
    ● AC power to platform
    ● Platform work lights
    ● Non marking tyre


    Specification:

    Size
    ModelGTJN 10GTJN 13GTJN 16
    Maximum Working Height(A)12m15m18m
    Maximum Platform Height(B)10m13m16m
    Overall Length(C)4..88m4..88m4..88m
    Overall Width(D)2.27m2.27m2.27m
    Platform Size(Length/Width F)3.98 x 1.83m3.98 x 1.83m3.98 x 1.83m
    Slide-out platform extension1.30m1.30m1.30m
    Minimum Ground Clearance0.22m0.22m0.22m
    Wheel Base2.86m2.86m2.86m
    Performance
    S.W.L1000kg680kg680kg
    S.W.L On Extension230kg230kg230kg
    Maximum platform occupancy777
    Minimum Turning Radius(Inside/Outside)2.35m/5.2m2.35m/5.2m2.35m/5.2m
    Travel Speed(Stowed)6.8km/h6.8km/h6.8km/h
    Travel Speed(Raised)1km/h1 km/h1 km/h
    Maximum Gradeability50%50%50%
    Maximum Working Slope
    Tyre - rough terrain33×12-2033×12-2033×12-20
    Power
    Power sourcePerkins404D22 38kW/3000rpmPerkins404D22 38kW/3000rpmPerkins404D22 38kW/3000rpm
    Auxiliary Power unit12V DC12V DC12V DC
    Fuel tank capacity100L100L100L
    Hydraulic system capacity130L130L130L
    Weight
    Gross Weight(with outriggers)7940kg8200kg9190kg

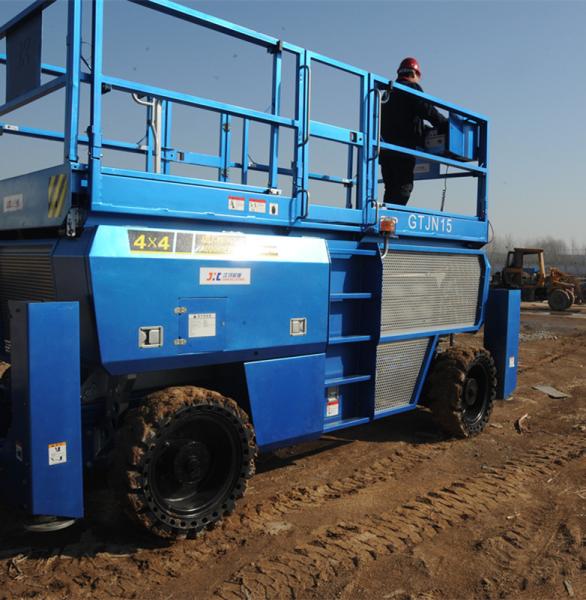

    Picture show:

    Quality GTZN Industrial Hydraulic Lifting Platform Rough Terrain Scissor Lift With Outriggers for sale
