    Heavy Duty Compact 10 Ton Wire Rope Hoist 220V To 440V Wire Rope Lifter

    Ask Lasest Price
    Brand Name : Santo Crane
    Model Number : CD1
    Price : 600USD/SET
    Payment Terms : L/C, D/A, T/T, Western Union
    Supply Ability : 5000 Sets/ Year
    Delivery Time : 7 ~15 Working days
    • Product Details
    • Company Profile

    Heavy Duty Compact 10 Ton Wire Rope Hoist 220V To 440V Wire Rope Lifter

    Heavy Duty Compact 10t Electric Wire Rope Hoist Lifting Height 6m


    Description:


    Electric wire rope hoist is a kind of small lifting equipment with the advantages of compact structure, light weight, small size, strong universality of parts and convenient operation, etc. Welding, such as the installation and movement of various large and medium-sized concrete, steel structures and mechanical equipment, suitable for civil engineering and bridge construction in construction and installation companies, factories and mines, electric power, ships, automobile manufacturing, construction, highways, bridges, metallurgy, mining , slope tunnels, shaft management and protection and other infrastructure projects of mechanical equipment.


    Technical Parameters:


    The general details of wire rope electric hoist with standard type
    ModelCDMD
    Capacity (ton)0.5, 1, 2, 3, 510, 16, 200.5, 1, 2, 3, 510, 16, 20
    Travelling mechanismTravelling Speed (m/min)20, 3020, 30
    Motor (kw)1x0.4, 1x0.82x0.8, 4x0.81x0.4, 1x0.82x0.8, 4x0.8
    Lifting mechanismLifting Speed (m/min)87, 3.58/0.87/0.7, 3.5/0.35
    Lifting height (m)6, 9, 12, 18, 24, 309, 12, 18, 24, 306, 9, 12, 18, 24, 309, 12, 18, 24, 30
    Motor (kw)0.8, 1.5, 3.0, 4.5, 7.5130.8/0.2, 1.5/0.2, 3.0/0.4, 4.5/0.4, 7.5/0.813/1.5
    Duty ClassM3
    Power source380V, 50HZ, 3 phase (or other standard)
    Working temperature
    Branch of rope2 ropes(0.5t~5t), 4 ropes(10t~20t)
    BrakeMounted on motors
    Control modelPendant push button control or wireless remote control

    Advantages:

    Accurate orientetion ,hightly -efficient operation,improved logisitics effciency

    Safe and reilable ,montioed operation ,easy maintance

    Modularized design ,lower maintance cost ,perfect spare parts and components services.


    The parts of wire rope electric hoist can be roughly divided into:

    1. Reducer

    2. Reel device

    3. Hoisting motor

    4. Electric trolley

    5. Cone brake

    6. Adjusting nut

    7. Rope guide

    8. Coupling

    9. Hook device

    10. Control button

    11. Hollow shaft

    12. Box

    13. Sealing ring

    14.09 Gear

    15.06 Gear shaft

    16.05 Gear shaft

    17.04 Gear shaft

    18. Ball bearing

    19. Needle bearing

    20. Box cover

    21. Breathable plug

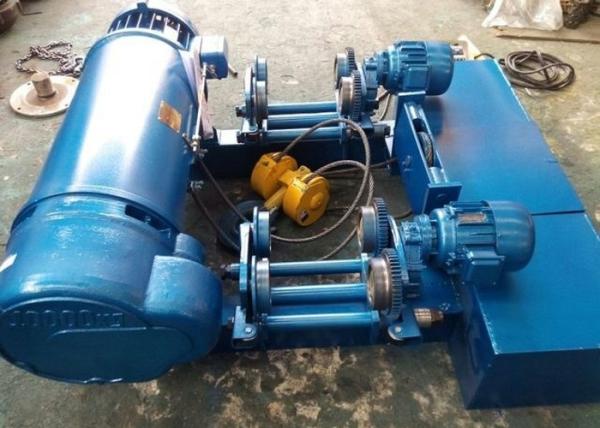

    Photos:


    Quality Heavy Duty Compact 10 Ton Wire Rope Hoist 220V To 440V Wire Rope Lifter for sale
