    High Efficiency Truck Mounted Boom Crane 75km/H 88km/H 8 Ton Crane Truck

    Ask Lasest Price
    Brand Name : Santo
    Price : 15000USD-50000USD
    Payment Terms : L/C, T/T
    Supply Ability : 1000SETS/YEAR
    Delivery Time : 20~45 WORKING DAYS
    • Product Details
    • Company Profile

    High Efficiency Truck Mounted Boom Crane 75km/H 88km/H 8 Ton Crane Truck

    High - Efficiency Truck Mounted Boom Crane With Broad Business Scope


    Product Description:


    Truck mounted crane is a kind of transport vehicle which is combined with truck mounted crane and chassis. It is composed of lifting arm, turntable, frame, outrigger and other parts. The mechanical action of the truck-mounted crane is realized through the actions of the luffing, telescopic, rotating, hoisting and other mechanisms, and the lifting operation is realized through the combination of different actions.


    Technical Parameters:


    1. Lifting performance


    Announced modelQY3B24QY5B30QY6B36

    QY8B40/

    LQY8B38

    QY10B42/

    LQY10B42

    QY12B45/

    LQY12B45

    QY16B52/

    LQY16B52

    LQY20B66
    Chassis brandDongfeng, T-king, BMC, Dayun, Benma, Shifeng, Wuzheng, Forland etc. as optional, or homemade
    Max.Lifting Capacity3 T5 T6 T8 T10 T12 T16 T20 T
    Max. boom length24 m30 m36 m40 m/38 m42 m45 m52 m66 m

    2. Chassis parameters of Dongfeng truck:


    Chassis brandDongfengDongfengDongfengDongfeng
    Announced modelEQ5102JQZKEQ5110JQZKEQ5120JQZKEQ5161JQZK
    Engine model4DX23-120E4WP4150E40YC4E140-42YC4E160-42/ISB180-40
    Power(kw)90105110118/132
    Axle base(mm)3800395042004500/5200
    Tire825-16825-20825-20825-20/900-20
    Dimension(mm)9940x2350x314010055x2400x325010110x2470x335011650x2480x3360
    Max.travel speed88 km/h75 km/h75 km/h75 km/h


    Adventages:


    The truck-mounted crane is widely used. Compared with the partner transportation of ordinary trucks and cranes, the truck-mounted crane has many advantages in business. It is not limited by time. In many places in big cities, trucks are not allowed to drive during the day, so goods are only transported at night. The charges for cranes at night are very high, and in this case, the advantages of truck-mounted cranes are obvious. The truck-mounted crane is especially required to transport the utility pole, because the truck-mounted crane can not only hoist and transport the utility pole, but also erect the utility pole to help the installation after arriving at the construction site, which is very convenient.​​


    It is convenient and fast. The largest model of the truck-mounted crane is only the 8X4 model, that is, the first four and the last eight models. This model is generally equipped with a 14-ton crane and 30 tons of goods. The length of the whole vehicle is only 13 meters, and the width is only 13 meters. It is only 2.5 meters, but for a truck crane, a casual truck crane is more than 20 meters, and the turning radius is too large, which is not easy to operate.​​


    Application:


    It is widely used in the hoisting and transportation of infrastructure materials and other equipment such as municipal construction, coal mine engineering, landscaping and so on.

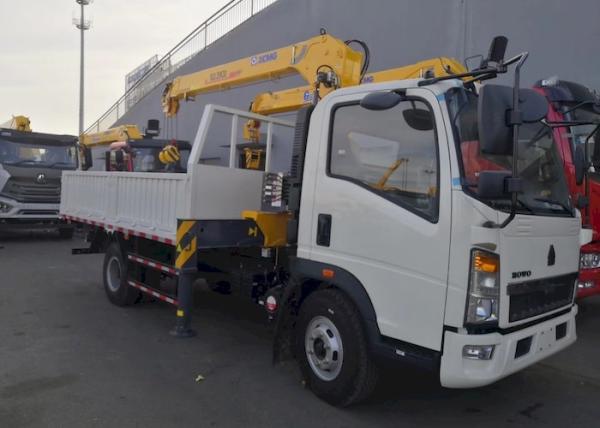

    Detail images:


    Quality High Efficiency Truck Mounted Boom Crane 75km/H 88km/H 8 Ton Crane Truck for sale
