    ISO Unlimited Distance 15t Electric Transfer Trolley For Carrying Loads

    Ask Lasest Price
    Brand Name : SANTO
    Model Number : KPX, KPJ, KPT, KPC, KPD,KP, BWP
    Certification : ISO
    Price : USD2500-6000/set
    Payment Terms : T/T, L/C
    Supply Ability : 3000 SETS/YEAR
    Delivery Time : 15~30 WORKING DAYS
    • Product Details
    • Company Profile

    ISO Unlimited Distance 15t Electric Transfer Trolley For Carrying Loads

    Unlimited Running Distance 15t Electric Transfer Cart For Loading Cargo


    Product description:


    Electric transfer cart is a kind of transport equipment for loading cargo, which can run both straightly and curvilinear along the track. It has the advantages of simple structure, convenient maintenance and large carrying capacity. It is widely applied for machinery manufacturing, metallurgy, assembly line, production line, ship industry (maintenance, assemble, container transportation), work piece transportation and warehouse to frequently transport or cooperate with cranes to transfer goods.

    Features:


    1. Low height, heavy duty, safe security
    2. Flexibility, high using frequency
    3. Long using time, long service life
    4. No limitation of running distance
    5. With lifting holes, convenient to shipment
    6. Stable start, big starting power
    7. Suitable for bad environment, high temperature, explosion environment
    8. Convenient for operation and maintaince


    Technical Parameters:


    Model

    KPDZ/S-5t

    KPDZ/S-10t

    KPDZ/S-25t

    KPDZ/S-30t

    KPDZ/S-40t

    KPDZ/S-63t

    Rated load

    5

    10

    25

    30

    40

    63

    Table size

    Length(L)

    3500

    3600

    4500

    4500

    5000

    5600

    Width(W)

    2000

    2000

    2200

    2200

    2500

    2500

    Height(H)

    450

    500

    600

    600

    650

    750

    Wheel Base

    2500

    2600

    3200

    3200

    3800

    4300

    Rail Inner Gauage

    1435

    1435

    1435

    1435

    1435

    1435

    Wheel Diameter

    300

    300

    400

    400

    500

    600

    Wheel Quantity

    4

    4

    4

    4

    4

    4

    Ground Clearance

    50

    50

    50

    50

    50

    75

    Running Speed

    0-25

    0-25

    0-20

    0-20

    0-20

    0-20

    Motor Power

    1.2

    1.6

    3

    3.5

    4

    6.3

    Transformer Power

    5

    5

    6.8

    10

    10

    20

    Transformer Quatity

    1

    1

    1

    1

    1

    1

    Running Distance

    80

    80

    80

    80

    60

    50

    Max Wheel Load

    25.8

    42.6

    94.5

    110.4

    142.8

    221.4

    Reference Weight

    3.6

    4.2

    6.5

    6.8

    7.6

    10.8

    Recommended Rail

    P18

    P18

    P38

    P38

    P43

    P50


    Transfer cart series:


    Electric Transfer Carts are mounted on steel rail for shuttling along a fixed path. They can be divided in different types according to different power supply mode, as below:


    1. KPT type is Towed Transfer Cart, powered by the cable laid on the ground directly. For its simple structure, the price is more competitive. While the distance is often limited in 100 meter.
    2. KPJ type is Cable Reel Transfer Cart, powered by the cable from the cable reel. With the cable reel, the moving distance is improved to 200 meter compared with the KPT type.
    3. KPX type is Battery Transfer Cart, powered by the storage battery. Without the cable, this kind of transfer cart is more flexible and safe. While the capacity and the duty group are all affected by the storage battery. Especially, the price and the life span of the battery is also an important issue.
    4. KPC type is powered by the slide wire along the rail, so the moving distance is unlimited. The slide wire is the key point and also the weakest link.
    5. KPD type is powered by the low voltage DC power from the rail. Powered by the rail, the system is more reliable compared with the KPC type; the system is also more complicated and expensive.


    Application:


    The Vehicle is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).

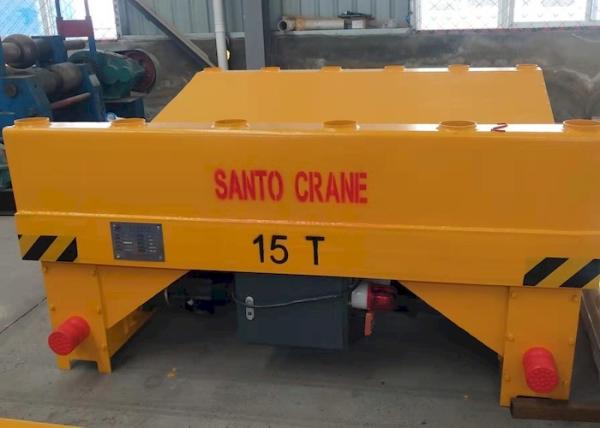

    Photos:



    Quality ISO Unlimited Distance 15t Electric Transfer Trolley For Carrying Loads for sale
