    1000kg To 3000kg Stable Hydraulic Scissor Lift In Factory Production Lines

    Ask Lasest Price
    Brand Name : SANTO
    Model Number : SJG
    Certification : ISO, CE
    Price : USD2000-5000/set
    Payment Terms : L/C, T/T
    Supply Ability : 2000set per year
    Delivery Time : 30-35 working days
    • Product Details
    • Company Profile

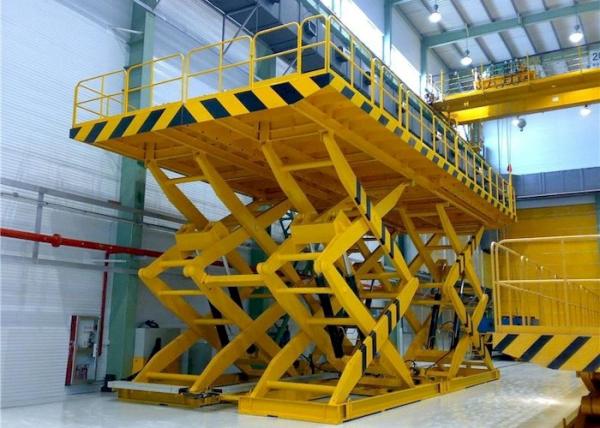

    1000kg To 3000kg Stable Hydraulic Scissor Lift In Factory Production Lines

    Stable Lift Hydraulic Scissor Lift Widely Installed In Factory Production Lines


    General description:


    Scissor lift tables are used for lifting and lowering goods at required heights in safe conditions for the operator. Main components are the top platform, the lower frame, the scissor system activated by one or more cylinders and hydraulic motor. Scissor lift tables have become a commonly used type of equipment in many different industries. In many cases, they represent the best solution for the manual load handling, in full observance of the safety standards with regards to functioning, cost-saving, safety and health of operators during work.

    Stationary Hydraulic Scissor Lift is generally used for lifting cargo and people to working place. Loading and unloading goods from ground to underground or to other floors.


    Installation Model:


    1. One is to be installed on ground to load and then reach a certain height for unloading.
    2. The other is installed in a lift pit. Then platform table is at the same level with the ground which is convenient to load the cargo onto it.


    Specification:


    Item/modelSJG1-4SJG3-4SJG1-5SJG3-5SJG3-6
    Rated capacitykg10003000100030003000
    Lifting heightmm4000400050005006000
    Max. heightmm46804800580059607120
    Min. heightmm6808008009601120
    Platform sizemm2000*20002000*20002000*20002000*20002000*2000
    working voltageVAC380AC380AC380AC380AC380
    Motor powerkw2.25.52.55.55.5
    Net weightkg15002000170025003000

    Note: Load capacity, platform size, and lifting height can be totally customized according to requirements.


    Safety:


    1. Explosion-proof electric equipment
    2. Spillover valve
    3. Hydraulic overload protective device
    4. Overload protection
    5. Emergency decline valve
    6. Limit switch.


    Application:


    The scissor lift table can walk fast and slow at different heights, and can continuously complete up and down, forward, backward, steering and other work on the convenient operation platform in the air. This product adopts high-quality structural steel, laser welding electronic manipulator single-sided welding double-sided forming process, aerospace cartridge valve technology, the platform is equipped with alarm devices such as level alarm, balance valve, automatic safety board, etc., the platform is safe, reliable and durable, and the working height can be adjusted. Up to 12 meters, with a load of 300 kilograms, the fence can be extended horizontally, which greatly expands the operating range, and is suitable for customers who have high-altitude operation requirements such as factory workshops, square lobby airports, and parks.


    Products Detail:


    SKID-PROOF PLATFORM

    The platform of the scissor lift table is made of checkered steel plate. Checkered steel plate could increase the friction coefficient of the platform, which prevents people and goods slipping down.


    HYDRAULIC MOTOR

    The hydraulic motor has incredible features: small, compact structure, lightweight, highly efficient, great working pressure, reliable performance, and no leaks.


    REMOVABLE GUARDRAIL

    The guardrail is removable. We could assemble or disassemble the guardrail according to practical application. It could prevent people from injury if the goods fall down when lift moving.


    CONTROL SYSTEM

    DELIXI control system is adopted and it achieves multiple controls including hierarchical button control and remoter control. We also could provide a PLC system to control the lift work for more complicated projects.
