    Remote Control Double Girder Hoist

    Ask Lasest Price
    Brand Name : SANTO
    Model Number : LH
    Certification : ISO, CE
    Price : USD5000-30000/set
    Payment Terms : L/C, T/T
    Supply Ability : 5000set/year
    Delivery Time : 35-40 working days
    • Product Details
    • Company Profile

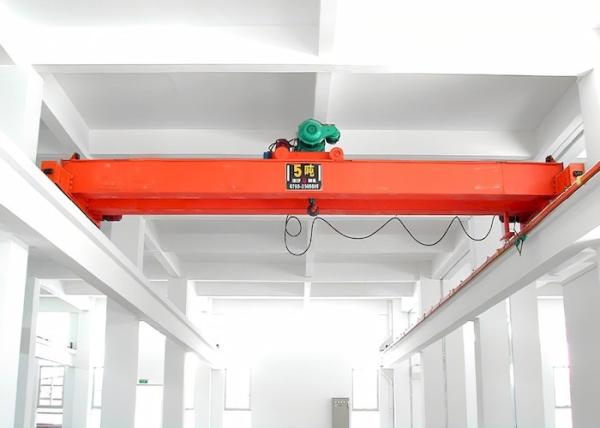

    Remote Control Double Girder Hoist

    High Quality Remote Control Double Girder Hoist Overhead Traveling Crane 5 Ton 10 Ton 15 Ton 20 Ton 30 Ton


    Product introduction:


    LH model Electric Hoist Double Girder Overhead Traveling Crane is a light duty lifting equipment, it is widely used in factories,plants,warehouse, workshop to lift goods or assemble machine,it is not frequently used in a day.
    LH model Electric Hoist Double Girder Overhead Traveling Crane is composed with Girder frame, Crane traveling device, and trolley with lifting and moving device, festoon cable and electric control system. The control mode is pendent line control,remote wireless control,cabin control. The lifting unit is electric hoist. The working class is A3 or A4. There are two rails for the trolley move on the main girder.
    The crane girders are of welded girder construction. This result in lower dead weights with a high degree of vertical and horizontal rigidity and smaller wheel loads being transmitted to the crane runway.


    Specification:


    Load capacity(t)3510162020/532/5
    Span(m)10.5~31.5
    Max Lifting height(m)Main Hook6~30
    Auxiliary Hook6~30
    Working classA3 A4
    Speed(m/min)Main Hoisting8,8/0.88,8/0.87,7/0.73.5,3.5/0.353.5,3.5/0.353.5,3.5/0.352.4,2.4/0.24
    Auxiliary Lifting8,8/0.88,8/0.8
    Trolley Cross Traveling20,2~20
    Crane Long Traveling30,3~30
    Motor TypeSquirrel cage motor
    Motor (Kw)Main Hoisting4.57.5131318.518.518.5
    Auxiliary Lifting7.57.5
    Trolley Cross Traveling2*0.4, 2*0.8, 2*1.5
    Crane Long Traveling2*0.8, 2*1.5, 2*2.2
    Control modePendent control, Remote control, Cabin control
    Recommended Rail model24kgs/m30kgs/m38kgs/m43kg/m or P50
    Power source3Ph A.C 50Hz 380V, or as requirements

    Crane Details:



    Safety feature:
    Weight overload protection device, top quality long time bearing polyurethane materials buffer, crane traveling limit switch, voltage lower protection functions, emergency stop system, current overload protection system and so on!

    Optional Features:
    Weight overload protection device
    Emergency stop system
    Over current Protection, Short-circuit Protection
    Phase sequence protection
    Zero position protection, No-Voltage protection, convenient and simple operation.
    Protective earth conductor is fitted as standard
    Voltage lower protection system
    Current overload protection system
    High protection level IP44,IP54,IP55
    Long and cross travel limit switch
    Anti-falling protection of trolley and crane prevents from accidental falling
    High quality long time bearing polyurethane materials buffer fixed at the end of trolley travelling and crane travelling to prevent over traveling
    Safety hook latch used for avoiding the lifted material out off from the hook
    Audible and visual alarm device to inform the person stay near by the travelling crane
    Rain Cover for lifting mechanism of outdoor cranes, electric cabinet and driving mechanism

    Design standard
    Crane design standard GB 3811.
    General Purpose Overhead Crane design standard GB/T14405
    Manufacturing and tolerances of rail installation GB/T10183.
    Crane wheel standard:JBT 6392
    Crane test specification and procedures GB/T5905.
    Crane electric control equipment JB/T4315.
    Important application wire rope GB8918.
    Carbon structure steel GB/T700.
    Low alloy high strength structure steel GB/T1591.
    Welding joint radiographic inspection standard JB928.
    Steel welding joint manual ultrasonic flaw detection way GB11345.


    Delivery:

    Electrical and other parts packed by high quality plywood crate, steel beams packed by plastic films or plastic woven cloth.
