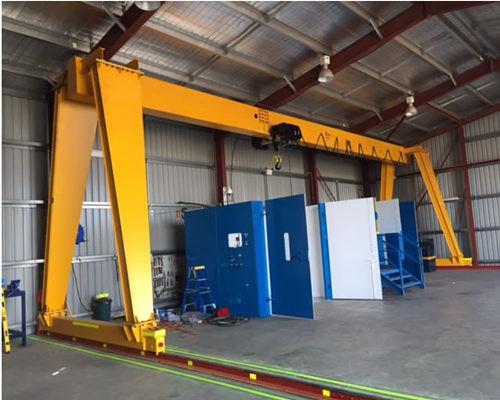

    5ton Single Beam Warehouse Gantry Crane With Wirerope Electric Hoist

    Ask Lasest Price
    Brand Name : SANTO
    Model Number : MH, BMH, MHL, MDG
    Certification : ISO, CE
    Price : USD4999-49999/set
    Payment Terms : L/C, T/T
    Supply Ability : 5000set/year
    Delivery Time : 15-30 working days
    • Product Details
    • Company Profile

    5ton Single Beam Warehouse Gantry Crane With Wirerope Electric Hoist

    5ton Single Beam Warehouse Gantry Crane With Wirerope Electric Hoist



    Henan Santo Crane Co., Ltd. is well-known for professional manufacturer and service-supplier of new high-tech gantry crane, overhead crane, electric hoist, portal crane, steel workshop. Our products are widely used in energy, metallurgy, transportation, heavy machinery, Nuclear power, hydropower, aviation and military projects a series of environment-friendly machinery. All of the products can be customized as your demand.


    Brief Interduction
    Gantry Cranes are also known as Portal cranes or Goliath cranes and operate on floor mounted rails rather than a supporting runway system as used by bridge cranes.
    Unlike overhead cranes, gantry cranes have legs and move on rails which are usually mounted on floor level.
    Semi Gantry cranes feature a floor mounted rail and a structurally mounted rail.
    Manufacturing in accordance with the different customer´s requirements, including single girder, double girder, single leg, double leg, semi gantry, and cantilever styles.
    SANTO have single girder solutions for Gantry Cranes from 1 ton SWL up to 32 ton and double girder solutions up to 550 ton SWL.

    Technical Specification:

    CapacityT35101620
    Spanm12,16,20,24,30,35,40,50
    Operational methodPendant Line With Press Button /Cabin/ Remote
    SpeedLifting

    m/min

    8 ,8/0.88,8/0.87,7/0.73.53.5
    Cross travelling2020202020
    Long travellingGround2020202020
    Cabin20, 30,4520, 30,4030,4030,4030,40
    MotorLiftingType /kwZD41-4/4.5
    ZDS1-4/0.4/4.5
    ZD141-4/7.5 ZDS10.8/4.5ZD151-4/13 ZDS11.5/4.5ZD151-4/13ZD152-4/18
    Cross travellingZDY12-4/0.4ZDY121-4/0.8ZDY21-4/0.8×2ZDY121-4/0.8×2YZD-4/0.8×4
    Long travellingGroundZDY21-4/0.8×2
    ZDY21-4/1.5×2
    YZY22-4/1.5×2
    YZR132M2-6/3.7×2
    YZR22-4/1.5×2YZR160M1-6/6.3×2
    YZR160M2-6/8.5×2
    YZR160M1-6/6.3×2
    YZR160M2-6/8.5×2
    CabinZDR100-4/1.5×2
    ZDR112-4/2.1×2
    YZR112L1-4/2.1×2
    YZR160M1-6/2.1×2
    YZR112L1-4/2.1×2
    YZR160M2
    YZR160M2-6/8.5×2
    YZR160L2-6/11×2
    YZR160M2-6/8.5×2
    YZR160L2-6/11×2
    Electric hoistModelCD1/MD1CD1/MD1CD1/MD1CD1HC
    Lifting heightm6,9
    Working dutyA3
    Power supply380V 60HZ 3phase AC (According to your demand )

    Safety Features
    • Limit switch: prevent pressure.
    • Overload protect device: once overweight, stop working immediately.
    • Buffer: avoid collision.
    • Brake: a restraint used to slow or stop a vehicle.
    • Emergency stop switch: has the protection of any emergency.
    Material
    • Motor: He li Brand made by Nan jing special motor factory, or Jiamusi Brand.
    • 80% of the parts product by ourselves, so we can control the quality strictly.
    • Meanwhile, we can also offer sway control to prevent swing.
    Advantage
    • Good quality with competitive price
    • Reasonable structure, favorable performance
    • Control the load easily and position the load exactly
    • Smooth starting and stopping
    • Superior safety and reliability
    • Low noise, commodious cabin and good view
    • Low dead weight low your cost
    • Easy maintenance for parts
