    Chinese Gantry Cranes Schneider Motor Lifting Height 3.5 - 30 M/Min Trolley Speed

    Ask Lasest Price
    Brand Name : Santo Crane
    Model Number : MG MDG
    Certification : ISO, CE
    Price : $9999-$49999
    Delivery Time : 25~45 working days
    Payment Terms : T/T,LC
    Supply Ability : 1999set/year
    • Product Details
    • Company Profile

    Chinese Gantry Cranes Schneider Motor Lifting Height 3.5 - 30 M/Min Trolley Speed

    Product Description:

    1.Double girder gantry crane is applied open warehouse or rail along for general handling and lifting work,

    it also can equipped with many lifting device for special work.

    2.This kind of crane is composed of bridge, support legs, crane traveling organ, trolley, electric equipment,

    strong lifting winch,the frame adopts boxtype welding mechanism, crane traveling mechanisms are

    operated in the driver cabin or remote control. Power is supplied by cable or slide wire, there are different

    capacity double beams gantry crane for your choice according to your different use.

    3.Double girder gantry crane have A type,U type.U type is designed for container lifting.It could be

    designed with cantilever or not.The crane working class is A5.

    4.There are two type structure for the main girder and leg as optional: truss girder type and box girder type.
    5.It is prohibited for lifting melt metal , flammable, explosive, corrosion, overloading,

    dust and other dangerous operations.

    Chinese Gantry Cranes Schneider Motor Lifting Height 3.5 - 30 M/Min Trolley Speed

    Features:

    • Product Name: Double Girder Gantry Crane
    • Color: Yellow, Red, Or As Requirements
    • Working Duty: A5-A8
    • Country: China
    • Power: Electricity
    • Trolley Travel Speed: 3.5 -30 M/min
    • Keywords: Container Gantry Crane
    • Keywords: Construction Crane Equipment
    • Keywords: Double Girder Hoist
    Chinese Gantry Cranes Schneider Motor Lifting Height 3.5 - 30 M/Min Trolley Speed

    Technical Parameters:

    Capacity
    T
    50/10
    75/20
    100/20
    Span
    m
    7.5~31.5
    Lifting height
    Main hook
    m
    12
    20
    22
    Aux.hook
    m
    16
    22
    22
    Operation method
    Pendent control,wireless control,cabin control
    Speed
    Lifting
    Main hook
    m/min
    5.9
    5.5
    3.53
    Aux.hook
    m/min
    13.2
    9.23
    7.2
    Cross travel
    m/min
    38.5
    38.4
    33.86
    Long travel
    m/min
    74.6
    65
    65.6
    Lifting mechanism
    type
    Heavy duty open winch, double girder trolley hoist
    Working duty
    A5,A6,A7
    Power supply
    AC
    220/380/400/415/460V,50/60Hz, 3P

    Applications:

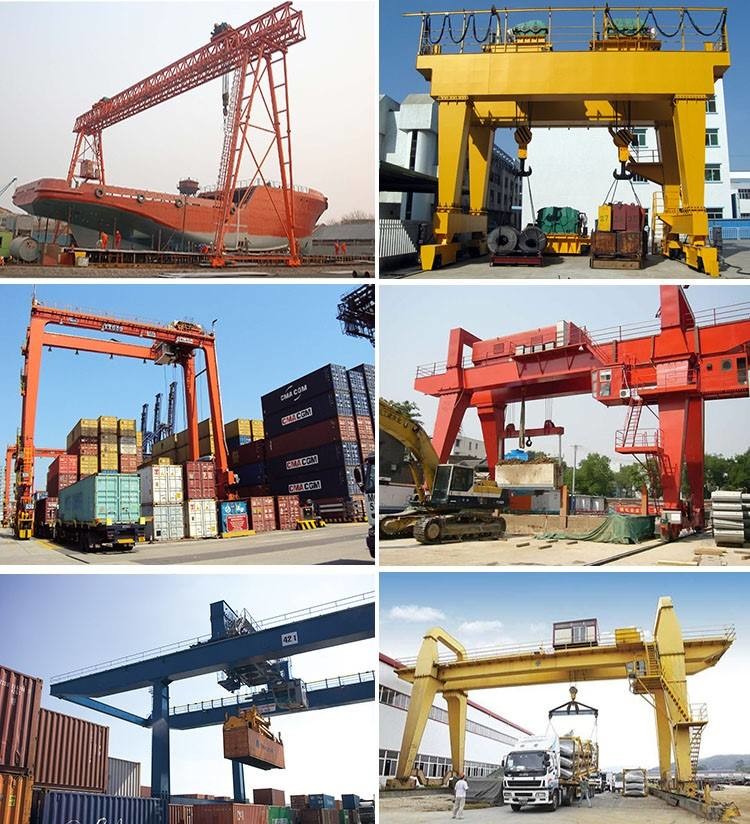

    Double girder gantry crane for factory yard is normally using in open-air warehouse. It normally

    accompanied with particular lifting tools using in the container shipyard.

    It has features of beautiful and durable appearance, perfect performance, low cost, easy maintenance,

    high adaptability and so on.

    It is composed of beam, support legs, crane traveling mechanism, trolley, electric equipment and so on.

    The strong legs shape is like a English Letter ”A”, this design is very benefit when the container pass by

    thought the legs.

    The control method could be ground control, remote control, cabin control or both.

    Chinese Gantry Cranes Schneider Motor Lifting Height 3.5 - 30 M/Min Trolley Speed

    Packing and Shipping:

    Packing:

    1. Electric parts are packed by high quality plywood crate to reduce distortion in conveying;

    2. Main beams, end beams and electric hoist / winch are packed by plastic woven cloth. It can reduce abrasion when transport.

    Delivery:

    1. If the size of whole crane are suitable for container ship, usually by container;

    2. If the size is too big, usually by bulk ship or by container after truncation;

    3. Transport ways are based on reducing cost for you and keep the crane in good condition.

    Chinese Gantry Cranes Schneider Motor Lifting Height 3.5 - 30 M/Min Trolley SpeedChinese Gantry Cranes Schneider Motor Lifting Height 3.5 - 30 M/Min Trolley Speed

    FAQ:

    Chinese Gantry Cranes Schneider Motor Lifting Height 3.5 - 30 M/Min Trolley Speed

    In order to offer you a precisely quotation, please tell us these information:

    1.The lifting capacity__ ton?
    2.The span length is__ m? (Span=distance between center of two rails)
    3.The lifting height is __m? (Lifting height=Distance from hook to ground)
    4.What is the lifting speed? (Single speed or double speed)
    5.What control mode do you need? (Pendant control or remote control or cabin)
    6.What is the power supply in your country? (Our standard power supply is 380V,3Ph,50Hz, other pls indicate)
    7.Is there any other special requirements? (If need us to supply rails? how long? etc)
